Pneumatic fitting (R, PT, BSPT, NPT thread)

1. Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
2. The brass components are nickel plated brass and teflon-treatment is used on all tapered threads
3. Pneumatic fittings are equipped with a Gasket, Stainless steel grab-ring to grip nylon or PU tubing.
Pressure Range: 0~1.0 MPa ( 0~150 PSI)  Temperature Range: 0~60ºC (32~140ºF)

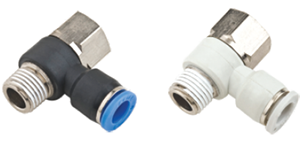

Female Banjo Push In Fitting - PHF

pneumatic fitting

Metric Size - BSPT Thread (R Thread)

MODEL Tube Size Thread Size Description
PHF 04-M5 4mm M5 Female Banjo 4mm M5
PHF 04-M6 4mm M6 Female Banjo 4mm M6
PHF 04-01 4mm R1/8" Female Banjo 4mm R1/8"
PHF 04-02 4mm R1/4" Female Banjo 4mm R1/4"
PHF 6-M5 6mm M5 Female Banjo 6mm M5
PHF 6-M6 6mm M6 Female Banjo 4mm M6
PHF 6-01 6mm R1/8" Female Banjo 6mm R1/8"
PHF 6-02 6mm R1/4" Female Banjo 6mm R1/4"
PHF 6-03 6mm R3/8" Female Banjo 6mm R3/8"
PHF 6-04 6mm R1/2" Female Banjo 6mm R1/2"
PHF 8-01 8mm R1/8" Female Banjo 8mm R1/8"
PHF 8-02 8mm R1/4" Female Banjo 8mm R1/4"
PHF 8-03 8mm R3/8" Female Banjo 8mm R3/8"
PHF 8-04 8mm R1/2" Female Banjo 8mm R1/2"
PHF 10-01 10mm R1/8" Female Banjo 10mm R1/8"
PHF 10-02 10mm R1/4" Female Banjo 10mm R1/4"
PHF 10-03 10mm R3/8" Female Banjo 10mm R3/8"
PHF 10-04 10mm R1/2" Female Banjo 10mm R1/2"
PHF 12-01 12mm R1/8" Female Banjo 12mm R1/8"
PHF 12-02 12mm R1/4" Female Banjo 12mm R1/4"
PHF 12-03 12mm R3/8" Female Banjo 12mm R3/8"
PHF 12-04 12mm R1/2" Female Banjo 12mm R1/2"
PHF 14-03 14mm R3/8" Female Banjo 14mm R3/8"
PHF 14-04 14mm R1/2" Female Banjo 14mm R1/2"
PHF 16-03 16mm R3/8" Female Banjo 16mm R3/8"
PHF 16-04 16mm R1/2" Female Banjo 16mm R1/2"

Inch Size - NPT Thread

MODEL Tube Size Thread Size Description
PHF 5/32-N01 5/32" 1/8" NPT Female Banjo 5/32" 1/8"NPT
PHF 5/32-N02 5/32" 1/4" NPT Female Banjo 5/32" 1/4" NPT
PHF 1/4-N01 1/4" 1/8" NPT Female Banjo 1/4" 1/8" NPT
PHF 1/4-N02 1/4" 1/4" NPT Female Banjo 1/4" 1/4" NPT
PHF 5/16-N01 5/16" 1/8" NPT Female Banjo 5/16"  1/8" NPT
PHF 5/16-N02 5/16" 1/4" NPT Female Banjo 5/16"  1/4" NPT
PHF 5/16-N03 5/16" 3/8" NPT Female Banjo 5/16"  3/8" NPT
PHF 3/8-N01 3/8" 1/8" NPT Female Banjo 3/8"  1/8" NPT
PHF 3/8-N02 3/8" 1/4" NPT Female Banjo 3/8"  1/4" NPT
PHF 3/8-N03 3/8" 3/8" NPT Female Banjo 3/8"  3/8" NPT
PHF 3/8-N04 3/8" 1/2" NPT Female Banjo 3/8"  1/2" NPT
PHF 1/2-N02 1/2" 1/4" NPT Female Banjo 1/2"  1/4" NPT
PHF 1/2-N03 1/2" 3/8" NPT Female Banjo 1/2"  3/8" NPT
PHF 1/2-N04 1/2" 1/2" NPT Female Banjo 1/2" 1/2" NPT

Inch Size - BSPT Thread (R Thread)

MODEL Tube Size Thread Size Description
PHF 1/4-01 1/4" R1/8" Female Banjo 1/4" R1/8"
PHF 1/4-02 1/4" R1/4" Female Banjo 1/4" R1/4"
PHF 5/16-01 5/16" R1/8" Female Banjo 5/16" R1/8"
PHF 5/16-02 5/16" R1/4" Female Banjo 5/16" R1/4"
PHF 5/16-03 5/16" R3/8" Female Banjo 5/16" R3/8"
PHF 5/16-04 5/16" R1/2" Female Banjo 5/16" R1/2"
PHF 3/8-01 3/8" R1/8" Female Banjo 3/8" R1/8"
PHF 3/8-02 3/8" R1/4" Female Banjo 3/8" R1/4"
PHF 3/8-03 3/8" R3/8" Female Banjo 3/8" R3/8"
PHF 3/8-04 3/8" R1/2" Female Banjo 3/8" R1/2"
PHF 1/2-02 1/2" R1/4" Female Banjo 1/2" R1/4"
PHF 1/2-03 1/2" R3/8" Female Banjo 1/2" R3/8"
PHF 1/2-04 1/2" R1/2" Female Banjo 1/2" R1/2"


PHF Series Female Banjo Adaptor Push-in Pneumatic Fitting. Pace Pneumatics Air Line Fittings Male Stud Coupling BSPT/ NPT are design with a releasable stainless steel grab-ring to grip nylon or polyurethane tubing. Release buttons allow for quick assembly and release, a true Push-to-Connect design. Nickel plated brass and sealant are used on all tapered threads and o-rings are on all parallel threads. Internal and external hexagons are standard.
