Brass Air Connector (BSPT, BSPP, NPT thread) - Nickel Plated

1. The pipe joint fittings can be used with rigid PU,PE,Nylon (PA 6,PA11,PA12)
2. Nickel-plated brass bodies ensures anti-corrosion and anti-contamination
3. A locking nut is provided and can be tightened both manually and with a spanner.
4. The special shape of the guiding cone ensures that the tube can not be accidentally cut.
Pressure Range: 0.8-16bar (see tube)  Temperature Range: -10°C-60°C(see data of used tubing)

★Accept the production according to client's samples or drawing

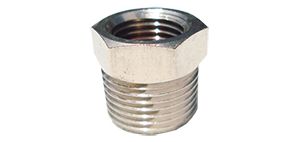

Brass Reduce Male To Female - PRMF

pneumatic fitting BRASS FITTING

BSPT (R) Thread or NPT thread

MODEL Thread Size Thread Size Description
PRMF 01-M5 R1/8" M5 Brass Female Straight R1/8" M5
PRMF 02-G01 R1/4" G1/8" Brass Female Straight R1/4" G1/8"
PRMF 03-G01 R3/8" G1/8" Brass Female Straight R3/8" G1/8"
PRMF 03-G02 R3/8" G1/4" Brass Female Straight R3/8" G1/4"
PRMF 04-G01 R1/2" G1/8" Brass Female Straight R1/2" G1/8"
PRMF 04-G02 R1/2" G1/4" Brass Female Straight R1/2" G1/4"
PRMF 04-G03 R1/2" G3/8" Brass Female Straight R1/2" G3/8"
PRMF 06-G03 R3/4" G3/8" Brass Female Straight R3/4" G3/8"
PRMF 06-G04 R3/4" G1/2" Brass Female Straight R3/4" G1/2"

BSPP (G) thread

MODEL Thread Size Thread Size Description
PRMF G01-M5 G1/8" M5 Brass Female Straight G1/8" M5
PRMF G02-G01 G1/4" G1/8" Brass Female Straight G1/4" G1/8"
PRMF G03-G01 G3/8" G1/8" Brass Female Straight G3/8" G1/8"
PRMF G03-G02 G3/8" G1/4" Brass Female Straight G3/8" G1/4"
PRMF G04-G01 G1/2" G1/8" Brass Female Straight G1/2" G1/8"
PRMF G04-G02 G1/2" G1/4" Brass Female Straight G1/2" G1/4"
PRMF G04-G03 G1/2" G3/8" Brass Female Straight G1/2" G3/8"
PRMF G06-G03 G3/4" G3/8" Brass Female Straight G3/4" G3/8"
PRMF G06-G04 G3/4" G1/2" Brass Female Straight G3/4" G1/2"

PRMF Series Male Straight brass air connector. Connection and disconnection of the tube can be repeated several times and is performed with one hand ,without using of tools.Nickel-plated brass bodies ensures anti-corrosion and anti-contamination.The sealing ring(O-ring) can be easily replaced if it is damaged..
