Pneumatic fitting (R, PT, BSPT, NPT thread)

1. Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing
2. The brass components are nickel plated brass and teflon-treatment is used on all tapered threads
3. Pneumatic fittings are equipped with a Gasket, Stainless steel grab-ring to grip nylon or PU tubing.
Pressure Range: 0~1.0 MPa ( 0~150 PSI)  Temperature Range: 0~60ºC (32~140ºF)

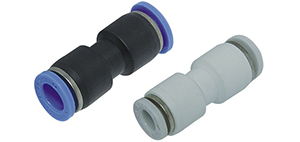

Union Reducer Push In Fitting - PG

pneumatic fitting

Metric Size - Metric Size

MODEL Tube Size Tube Size Description
PG 06-04 6mm 4mm Union Reducer 6mm 4mm
PG 08-04 8mm 4mm Union Reducer 8mm 4mm
PG 08-06 8mm 6mm Union Reducer 8mm 6mm
PG 10-04 10mm 4mm Union Reducer 10mm 4mm
PG 10-06 10mm 6mm Union Reducer 10mm 6mm
PG 10-08 10mm 8mm Union Reducer 10mm 8mm
PG 12-06 12mm 6mm Union Reducer 12mm 6mm
PG 12-08 12mm 8mm Union Reducer 12mm 8mm
PG 12-10 12mm 10mm Union Reducer 12mm 10mm
PG 14-12 14mm 12mm Union Reducer 14mm 12mm
PG 16-12 16mm 12mm Union Reducer 16mm 12mm

Inch Size - Inch Size

MODEL Tube Size Tube Size Description
PG 1/4-5/32 1/4" 5/32" Union Reducer 1/4" 5/32"
PG 5/16-5/32 5/16" 5/32" Union Reducer 5/16" 5/32"
PG 5/16-1/4 5/16" 1/4" Union Reducer 5/16" 1/4"
PG 3/8-5/32 3/8" 5/32" Union Reducer 3/8" 5/32"
PG 3/8-1/4 3/8" 1/4" Union Reducer 3/8" 1/4"
PG 3/8-5/16 3/8" 5/16" Union Reducer 3/8" 5/16"
PG 1/2-1/4 1/2" 1/4" Union Reducer 1/2" 1/4"
PG 1/2-5/16 1/2" 5/16" Union Reducer 1/2" 5/16"
PG 1/2-3/8 1/2" 3/8" Union Reducer 1/2" 3/8"

PKB Series Male Triple Union Adaptor Push-in Pneumatic Fitting. Pace Pneumatics Air Line Fittings Male Stud Coupling BSPT/ NPT are design with a releasable stainless steel grab-ring to grip nylon or polyurethane tubing. Release buttons allow for quick assembly and release, a true Push-to-Connect design. Nickel plated brass and sealant are used on all tapered threads and o-rings are on all parallel threads. Internal and external hexagons are standard.
